QUALITY DEFINED

*May not be supplied to certain countries

CAPACITY
Pipe: 1/8” -2”(3MM-50MM)
Bolt: 12MM-50MM

SPECIFICATIONS:
Motor: 1500W universal, 50/60Hz
Switch: Heavy-duty rotary Forward/off/reverse and integral foot switch.
Spindle Speed: 38 RPM.

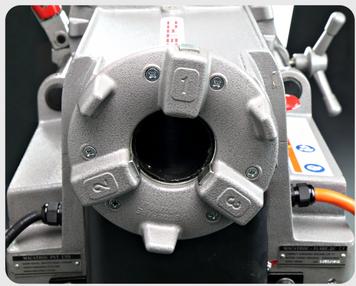

Front Chuck: Hammer type with replaceable
rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through the die head, with integral oil reservoir.
Pump: Self-priming constant flow, gerotor pump.



STANDARD SUPPLY
Model FLARE.2C Threading Machine. (110 or 220V )
Self-opening die head-SDH15A (BSPT or NPT )
½”-¾” universal HSS dies set. (BSPT or NPT)
1”-2” universal HSS dies set. (BSPT or NPT)
Cutter-MHC2029 : Capacity: 1/8”-2”(3mm-50mm) pipe
Reamer-MHR1006 : Positive-locking, 5-flute cone, righthand 1/8”-2”(3mm-50mm).
*1 Gallon ‘Power Fluid PF-9835’ cutting oil.
Supplied with MFS642 foot switch, MH6511 folding wheel stand  (Optional)

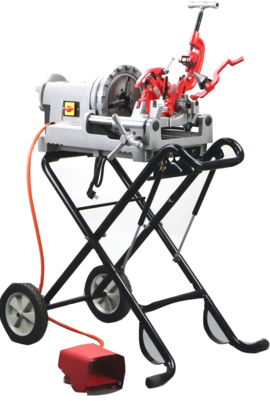

COMPACT THREADING MACHINE FLARE.2C

MODEL FLARE.2C THREADING MACHINE
Heavy-duty performance with 1500W motor.
Portable/ Light-weight design.
Easy transport and set-up.
Self-Contained Oil System with adjustable flow control.
